Rainwater Tank Accessories

Leaf-EaterLeaf Eater® Rain Head

  • Prevents debris entering the tank which improves tank water quality
  • Prevents blocked downpipes which stops backflow of water
  • Can be mid mounted on a wall making easy access for cleaning
  • Ideal pre-filters for First Flush Water Diverters
  • Includes 2 stainless steel screens:
    • 6mm Aperture for removal of leaves and debris
    • 0.955mm aperture preventing mosquitoes and vermin from entering pipe system
Code Description
RTLE01 Leaf Eater ® Rain Head



rt55wd-rainDiverter2Rainwater Diverter

The First Flush Rainwater Diverter diverts the first 40 litres of water away from your tank, meaning the quality of water reaching your tank is improved. It automatically drains itself after each time it rains. Available in all tank colours.





Code Description
RT40WD Rainwater Diverter



First-Flush-Downpipe-DivertDownpipe First Flush Water Diverter

  • Slow release valve ensures the chamber empties itself after rain and re-sets itself automatically
  • Improves water quality and protects pumps and internal appliances
  • Supplied in kit form – just add the appropriate length of pipe based on the quantity of water you require to divert
Code Description
RTDP01 90mm Downpipe First Flush Water Diverter Kit
RTDP02 100mm Downpipe First Flush Water Diverter Kit
RTDP03 150mm Downpipe First Flush Water Diverter Kit



fire-plugFire Plug®

  • Allows roof gutters to be filled with water when bushfires threaten
  • Conveniently fit to downpipe at waist height
  • Supplied in kit form
  • Withstand exceptionally high heat and flame when filled with water
  • Can be used throughout the year to re-direct rainwater to swimming pool, pond or garden
Code Description
RTFP02 90mm Fire Plug®
RTFP02 100mm Fire Plug®



Rain-Alert-02Rain Alert®

  • Wireless device
  • Safe and easy tank level monitoring
  • Tank level is continuously displayed on a small LCD panel on a receiver which can be located up to 200m away from the tank
  • Early warning indicator
  • Suitable for all vented tanks up to 2m in height
  • Quick and easy  to install
  • Low voltage lithium battery fitted in the transmitter
Code Description
RTRA01 Rain Alert® Wireless Tank Level Monitor



Tank-GaugeTank Gauge™

  • Quick and easy to install
  • Seals directly onto tank
  • Utilises a reliable float system
  • Easy to read dial with ‘Empty’ and ‘Full’ indicators
  • No batteries or wiring required
  • Low maintenance requirements
  • Suitable for all vented tanks up to 2.5m (100 inches) high
Code Description
RTTG02 Tank Gauge™ Level Monitor



Tank Stands

rain-tank-standRobust galvanized frame and quality timber decking. Engineered to withstand constant load.







Code Description Dimensions (L x W x H)
RTTS05 Tank Stand to suit RT00500 820 x 820 x 600 mm
RTTS0511 Tank Stand to suit RT00550LP & RT00950 1020 x 1020 x 600 mm
RTTS1122 Tank Stand to suit RT01100LP 1320 x 1320 x 600 mm



rain-again-pump2Automatic Water Saving Kit

In the event of a power failure, or lack of tank water, this device automatically supplies mains water until more tank water becomes available.

Code Description
PK01 Automatic Water Saving Kit



rain-again-pump-2Garden 'Rain-Again' Pump Kit

An economical pump kit designed to be used in conjunction with rainwater tanks, this kit includes all fittings and connections to connect to an existing tank.

Code Description
PK02 Rain Again Garden Pump Kit



basket-strainersRain Tank Basket Strainers

Mosquito proof mesh standard. Blank caps available where inlet strainer is not required.

Code Description
RTS200 Rain Tank Basket Strainer – 200mm Ø
RTS300 Rain Tank Basket Strainer – 300mm Ø
RTS400 Rain Tank Basket Strainer – 400mm Ø
RTS500 Rain Tank Basket Strainer – 500mm Ø



Ball Float Kit

Install this kit where tank is being fitted via a pressure line, to prevent accidental overflow. Standard 1" BSP connections – other sizes available.



Code Description
RTBFK Ball Float Kit

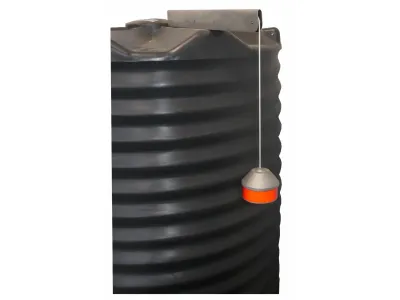

levetator2Water Level Indicator

This water level indicator gives a true level indication of the tank water level. Constructed from ‘no-rust’ materials. Fits easily to Orion Tank, and may be retro-fitted to other types of tanks.



Code Description
RTLY Rainwater Level Indicator



Raised Suction Kit

Raises the intake level where sediment is a problem. Standard intake height is 300mm from the base of the tank, other heights available to individual specification.

Code Description
RTRSK Raised Suction Kit





brass-tank-outlets
poly-tank-outlets

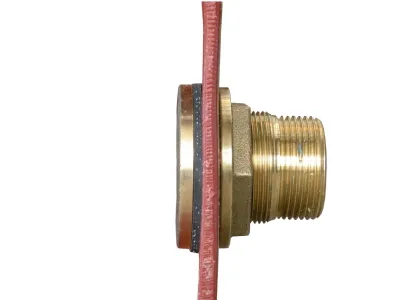

Tank Outlets

Brass and poly tank outlets, suitable for fitting to Rainwater Tanks, Water Cartage Tanks and Troughs.







Code Description
RTA33 ¾" male x ½" female Brass BSB Outlet
RTA34 1" male x ¾" female Brass BSP Outlet
RTA35 1¼" male x 1" female Brass BSP Outlet
RTA36 1½" male x 1¼" female Brass BSP Outlet
RTA37 2" male x 1½" female Brass BSP Outlet
RTA38 3" male Brass BSP Outlet
RTA39 4" male Brass BSP Outlet
RTA28 ½" Poly Outlet
RTA29 ¾" Poly Outlet
RTA30 1" Poly Outlet
RTA31 2" Poly Outlet

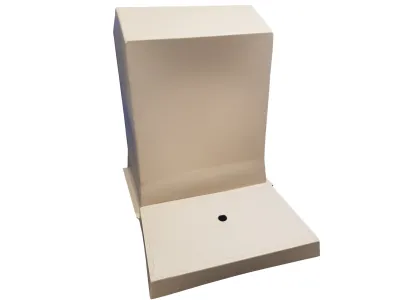

pump-coverPoly Pump Cover

Protect your investment in pumps and equipment from the weather, children or pets. Available in many tank colours.

Code Description
PC01 Poly Pump Cover for household pumps – 620 x 500mm Ø
